I'd been wanting to play with some embedded systems for quite some time but didn't really know where to start and didn't have any impressive ideas. I mean, really, how many computer controlled thermostats or dumb ass robots does this world need. Plus, I like to try to pretend that i'm not really a big nerd.

One day I ran across the worlds smallest web server. I thought this was pretty cool and wondered just how hard it would be to internet-enable something with an embedded web server. I went out and bought a TINI to play with some ideas, but it was back ordered... for 3 months. While I was waiting i found the $25 web server and thought, what the hell, I can do that.

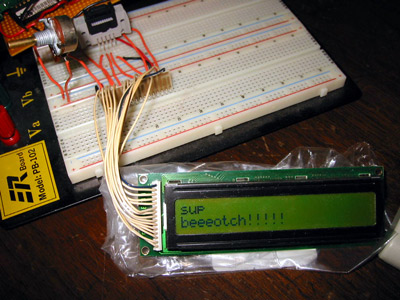

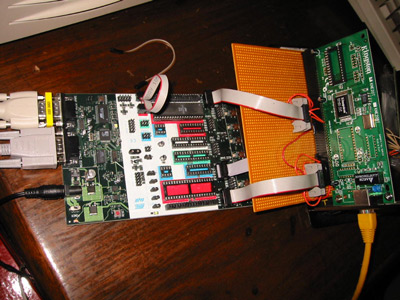

I went out and bought me an STK-500 developer board and an Atmel AT90S8515 8-bit microcontroller chip. Good times... I needed to do something easy with it to get started, so I bought an LCD from a surplus electronics place. It was easy enough to wire up the LCD and write some assembly and C programs to display clever messages to impress my friends. Never underestimate the ability of a
cool gadget to get HOT chicks at bars. I actually got laid several times because of that LCD.

Anyway, I decided it was time to wire up an old 3com ISA ethernet card I got for free from work and try to "internet-enable" something. I couldn't think of anything cool to hook up so I as stuck.

Then I ran across this.
HOT DAMM!!! hooking a nic to an avr and an lcd to display udp messages sent to the nic's IP.. how perfect is that? I can hook up with chicks in bars across the globe from the comfort of my own couch. Thanks Dave, whoever the hell you are.

So, I used that PDF (careful, there are mistakes in there) and info from
the $25 web server page to wire everything up. It didn't work. Imagine that. Well, whoever didn't put in big bold letters: 'Hey dumbass, you need an ne2000 card.' needs to get shot. My 3com card is not ne2000, whatever the hell that means. So, i got one off ebay for $1.99, plugged it in, turned it on and BOOM! the freakin' thing works.

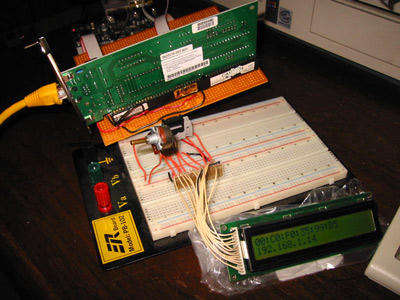

Here's what it does. You compile the IP address in the code and download it to the avr. When you turn it on, the chip initializes the nic and the lcd. It probes the card for a mac address and displays that plus the IP on the LCD. It then sits and listens on port 987 for a UDP packet. When it gets a packet, it decodes it and sends the data to the LCD. I wrote a little java app that will take in a string and send it to an IP using UDP. When you hit send, the message appears on the LCD. How cool is that?





Here's some of Dave's code:
; we have now advanced the read pointer up to the first byte of
; the "data" portion of the IP packet
; ok, now look back at the protocol field and jump to the right
; code to handle the packet type
ldi r18,1 ;icmp
cp r19, r18
breq ne2k_read_packet_icmp
ldi r18,6 ;tcp
cp r19, r18
breq ne2k_read_packet_tcp
ldi r18, 17 ; udp
cp r19, r18
breq ne2k_read_packet_udp

right... needless to say I didn't write any of the code behind this project. I did have to modify it to get it to work, though...

The nic cost $2, $8 for the microcontroller, and $10 for the LCD. Everything else I bought I didn't really need (like the STK-500, breadboard, perfboard, dirty hookers, etc.) but it sure as hell made life much easier.

That's great. Now what?

Now that I've figured out how to work with microcontrollers, and getting some random device to respond to commands sent through the internet I'm well on my way to finally getting my toaster to burn my english muffins from the other side of the planet.

---
